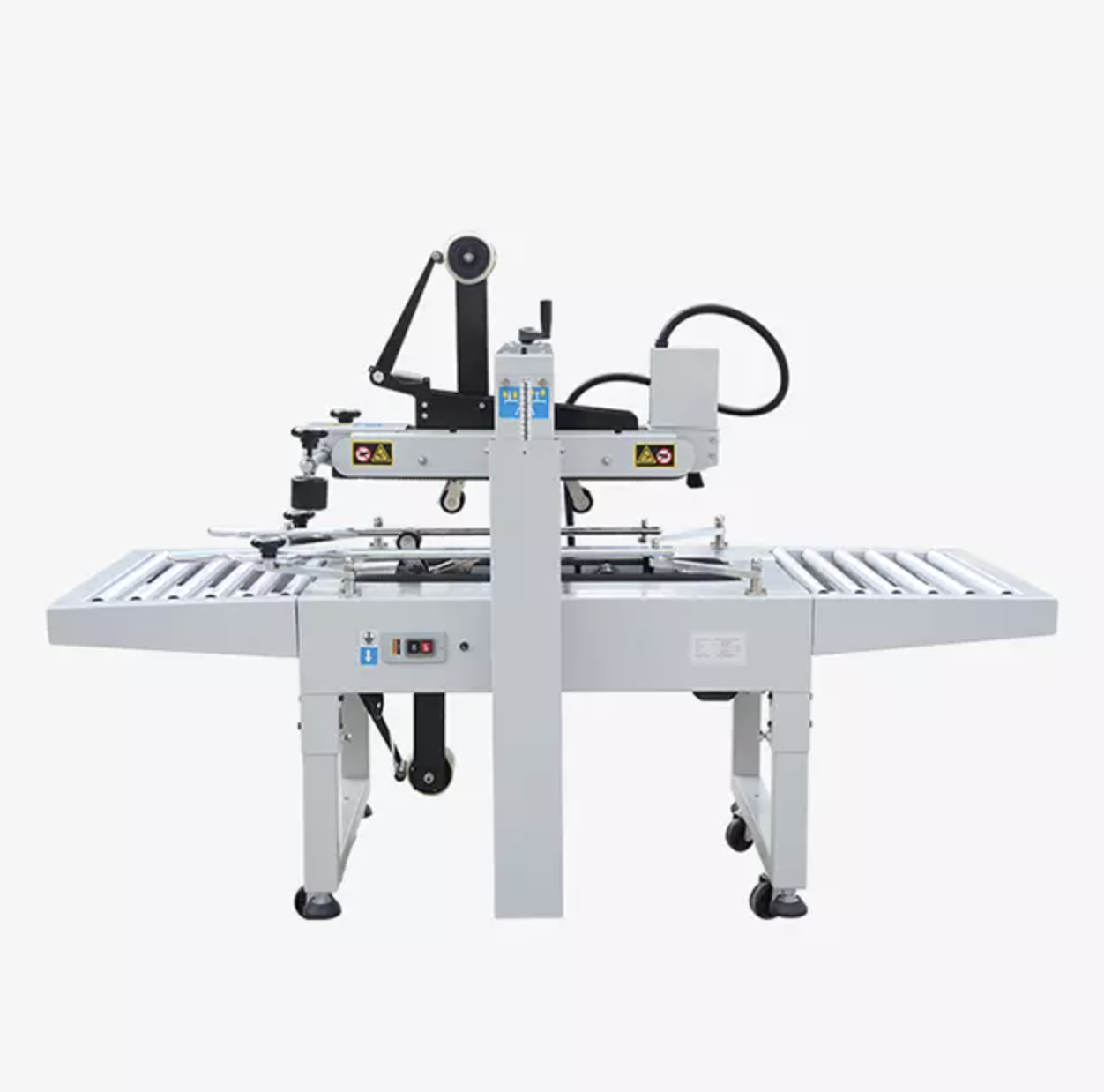

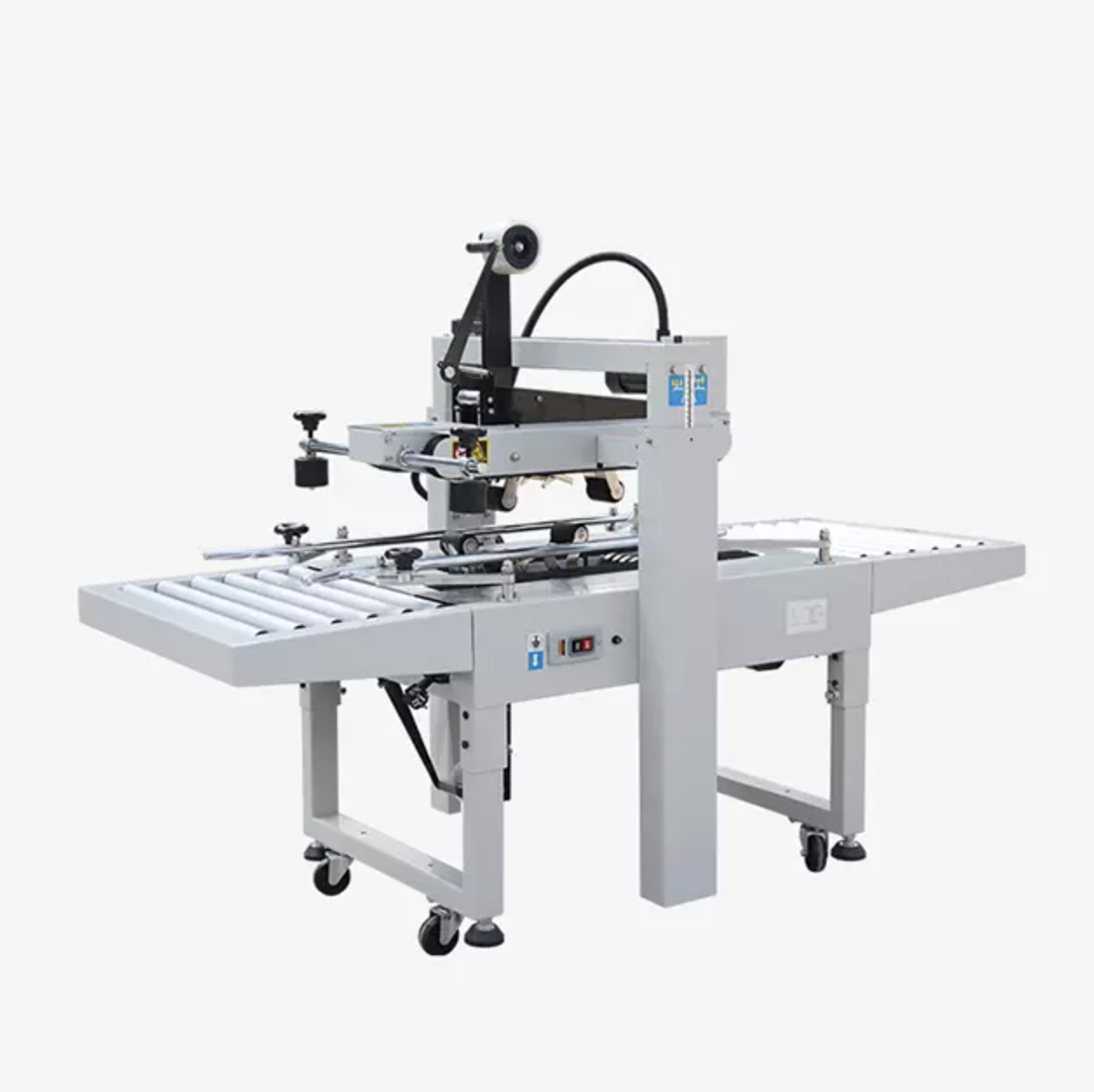

PP6050A-C

PP6050A-C series is designed to seal carton by applying adhesive tape. Cost effective, High speed

Description

Semi-automatic Carton sealer

Description:

  • PP6050A-C series is designed to seal carton by applying adhesive tape
  • Cost effective, High speed
  • Easy size changeovers
  • For integration into production line or as stand alone machine
  • It’s widely used in the fields of domestic electrical appliance, foodstuffs, general merchandise, medicine and chemical industry
  • Conveyor belt tension and tape tension are adjustable to meet the needs of soft/hard cartons
  • Printed tape can be used to improve enterprise image
  • Model FXJ-6050: top and bottom drive belts, used in circumstance where cartons size is not changed frequently, especially ideal for sealing uniform and high cartons
MODEL PP6050A-C
Voltage (V/Hz) AC 220/50 110/60
Power (W) 200
Max. Carton Size (W×H)(mm) 500×600
Min. Carton Size (W×H)(mm) 150×180×130
Speed (m/min) 20 m/min (25-45 cartons/min)
Adhesive Tape Materials BOPP, PVCadhesive tape, water-free adhesive tape
Height of Table (mm) 630-780
Width of Adhesive Tape (mm) 48, 60, 76 (optional)
External Dimensions (L×W× H)(mm) 905(with bracket 1755 )×800×(960-1650)
Net Weight (kg) 150
Max. Conveyor Load(kg) 30
