In Stock

PP-980ZQ

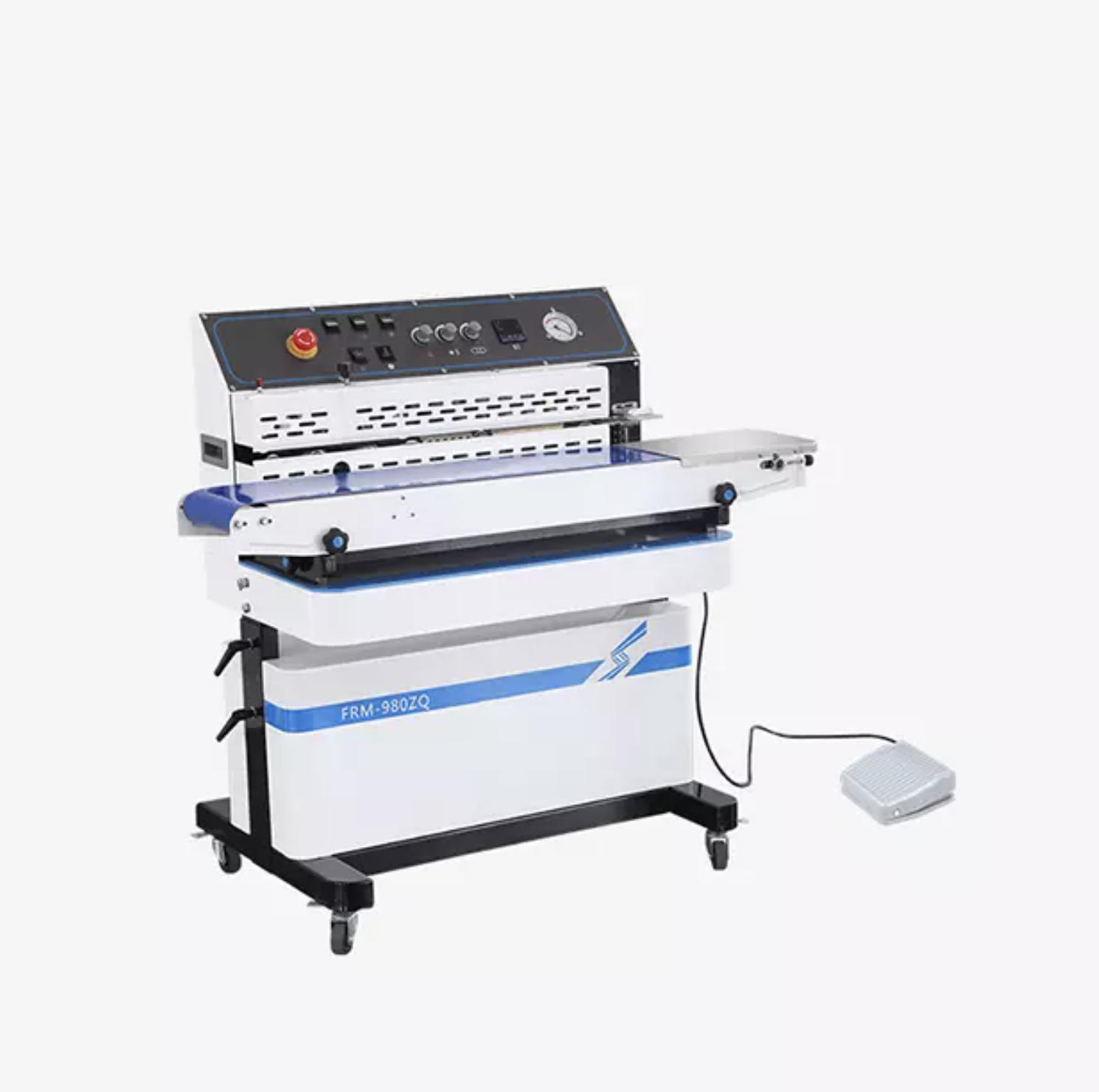

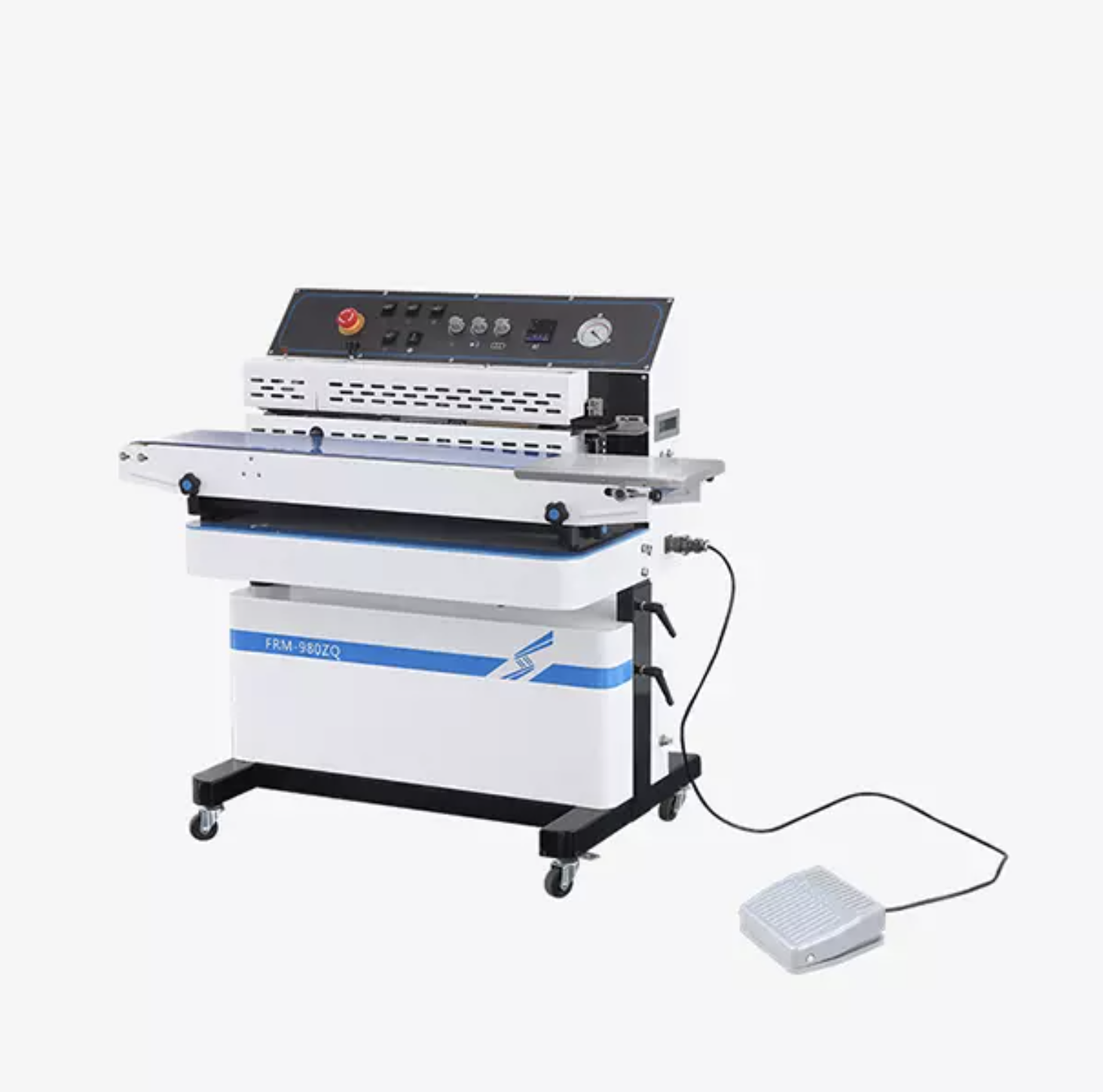

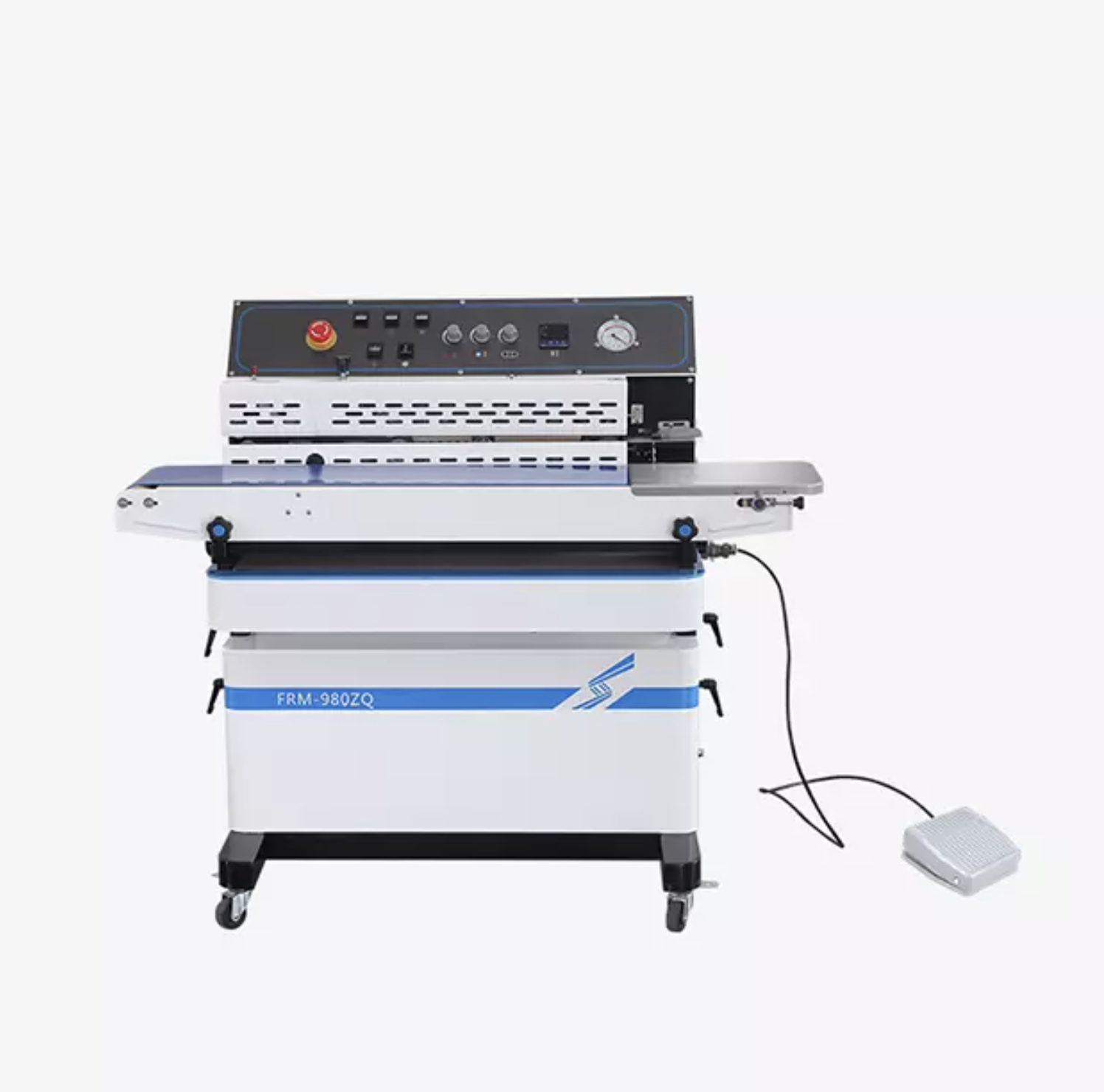

PP-980ZQ series Nitrogen Flushing Packaging Machine is applied to pack fragile or bulking objects generally.

,

Description

Description:
1.PP-980ZQ series Nitrogen Flushing Packaging Machine can seal any heat-sealable materials.
2. Two Mode: Exhaust gas+Sealing;Gas Flushing+Sealing.
3. The print wheel equipped to the machine can be used for both R arrange and T arrange of types.
4. For types in R arrange, the machine can print two lines in font size two (18PT) or three lines in font size five (10.5PT). If necessary, counting device can be equipped as well.

Features:
1. Constant temperature control and temperature is adjustable.
2. Stepless speed regulation
3. Solid-ink coding is featured by high definition, various selectable colors, instant dry while printing, strong adhesive
property.

Application:
PP-980ZQ series Nitrogen Flushing Packaging Machine is applied to pack fragile or bulking objects generally.

MODEL PP-980ZQ
Voltage   (V/Hz) AC 220/50 110/60
Motor Power (W) 50
Suction Pump Power(W) 750
Sealing Power (W) 300*2
Printing Heating Power (W) 40×2
Sealing Speed (m/min) 0-12
Sealing Width (mm) 10
Temperature Range (℃) 0-300
Printing Type Solid Ink Roller
Distance from Sealing Center to Conveyor Table (mm) 10-40
Distance from Base Plate to Interior Conveyor(mm) 68-85
Conveyor Table Size (L×W) (mm) 1054×203
Overall Conveyor Loading (kg) ≤10
External Dimensions (L×W×H) (mm) 1050×550×900
Net Weight (kg) 67
Diameter of nozzle for air flushing source 8mm
